18 Hole Tyco AMP Connectors , TYCO HDSCS Connector 1-1563759-1 Black Color

Name: 18 Hole Tyco AMP Connectors TYCO HDSCS Connector 115637591 Black Color
Brand: YBADDVANCE
Price: 1 USD

Wholesale 18 Hole Tyco AMP Connectors , TYCO HDSCS Connector 1-1563759-1 Black Color from china suppliers

Brand Name : YBADDVANCE

Model Number : 1-1563759-1

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 1-1563759-1

Martial : PBT/PA66

Color : Black

Type : AMP Tyco connector

HS code : 8536909000

Feature : Waterproof

Application : Automotive Car

WARRANTY : 1 year

Way : 18 hole

PLACE OF ORIGIN : Shaanxi,China

Contact Now

18 Pin AMP TYCO TE CONNECTIVITY HDSCS Series Connector 1-1563759-1

Description

HDSCS housings are heavy-duty, environmentally sealed connectors available in five sizes and arrangements from 2 to 18 cavities.

These HDSCS receptacle connector housings feature integrated secondary locks which conform contact alignment and retention producing an audible click when in the fully locked position.

A slide lock assists with the mating and unmating process and provides a secure mating connection.

They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.

We also can make the wire if you need it

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These are replacement high quality parts.

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name	18 Pin AMP TYCO TE CONNECTIVITY HDSCS Series Connector 1-1563759-1
P/N	1-1563759-1
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	18 pin AMP/Tyco connectors
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	18 hole
Color	Black
Warranty	1 year
Application	Automotive Motorcycles

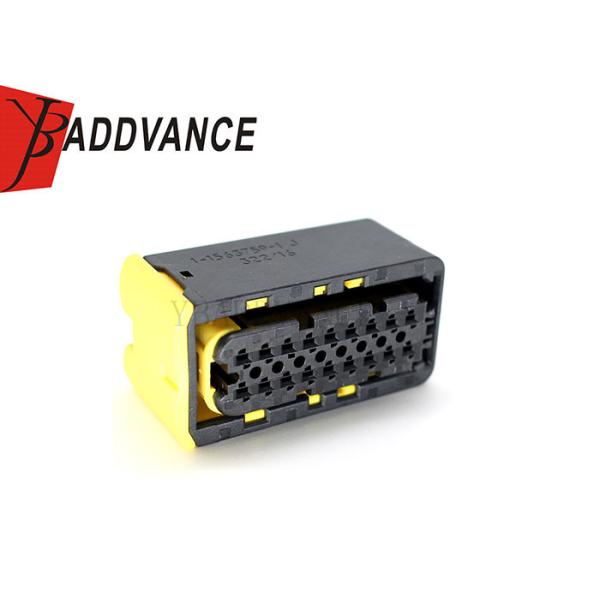

Product Picture Details

18 Hole Tyco AMP Connectors , TYCO HDSCS Connector 1-1563759-1 Black Color
