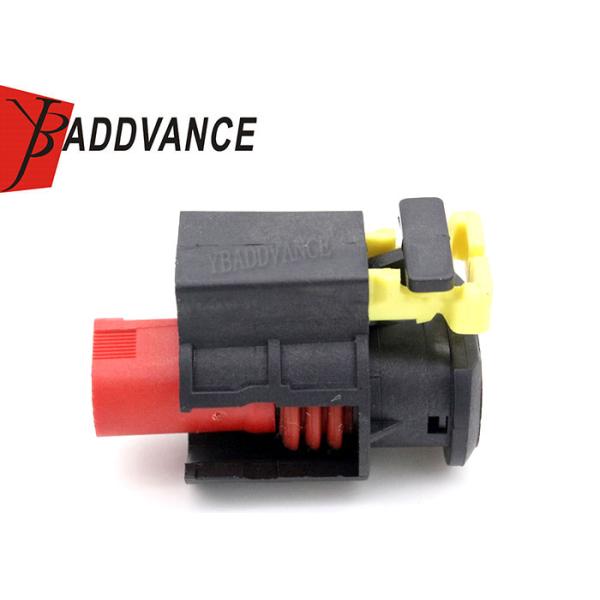

2 Pin AMP TYCO TE Connectivity Sensor Connector For Spark Coil 284556-1
Description
This connector is a TYCO/AMP Sealed Sensor Connector, typically used on CNG injectors,
OEM coils, and other various sensors under the hood on foreign and domestic production vehicles.
This TE Connectivity AMP range of Sealed Sensor Connector for Spark Coil, with Sensor flat type Timer crimp Contact are suitable for extreme environments as found in many automotive applications.
Height : 34.9 mm
Width : 22.6 mm
Length: 22.7 mm
Cable Exit Angle: 180°
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -140°C.
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
| Item name | 2 Pin AMP TYCO TE Connectivity Sensor Connector For Spark Coil 284556-1 |
| P/N | 284556-1 |
| Wire Size | 18-22AWG |
| Operating Temperature range | -40℃~125℃ |
| Insulation resistance | 100M Min. |
| MOQ | 100 units/lot |
| Key words | 2 pin sealed Connector |
| Design Tooling | Sending us samples or drawing to design it |
| Delivery Time | About 5-8 work days |
| Sealed/Unsealed | sealed |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |
Product Picture Details
