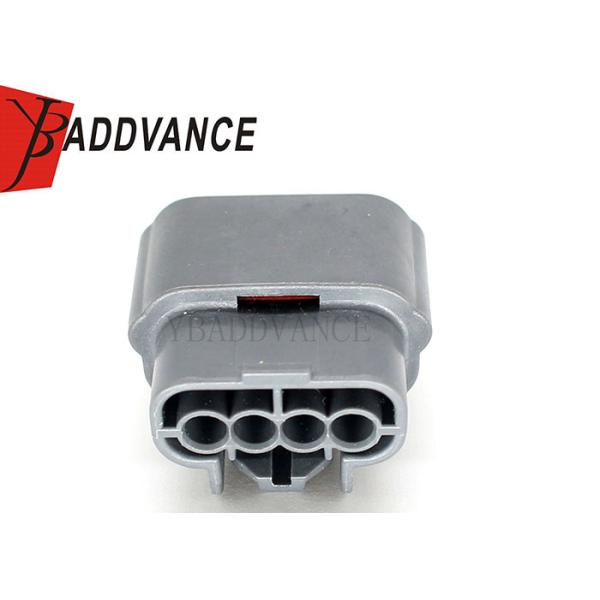

DL Sealed Series Sumitomo 4 Pin Connector 1.0mm 6189-0551 PBT Material

Product Categories

Xi'An YingBao Auto Parts Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: DL Sealed Series Sumitomo 4 Pin Connector 10mm 61890551 PBT Material
Brand: YBADDVANCE
Price: 0.5 USD

Brand Name : YBADDVANCE

Model Number : 6189-0551

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : USD 0.5-0.7 Per set with crimp terminals

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Series : Sumitomo DL sealed series

Sumitomo Part Number : 6189-0551

Material : PBT

Color : Dark Gray

Sealed/Unsealed : Sealed

Male/Female : F

Way : 4 Way

Application : Fit for Japanese cars

Leak current : 10μA Max.

Insulation resistance : 100MΩ Min.

Contact Now

DL Sealed Series 1.0mm(040) Sumitomo 4 Pin Connector 6189-0551

Product Description

4 Way sumitomo female connector come with wire seals and crimp pins.

YBADDVANCE connector will replace this kinds of sumitomo plugs.

DL sealed series

Terminals

1.0mm 8100-1466
1.0mm 8100-1467
1.0mm 8100-1501
1.0mm 8100-1502

Wire seals

1.0mm 7165-0547
1.0mm 7165-0548
1.0mm 7165-0386

Specification

Keywords	4 Pin sumitomo connector
Original Number	6189-0551
Type	High quality Original brand
Male/Female	female
Material	PBT
Number of Rows	1
Contact resistance	Initial 3mΩ Max. after durability tests 10mΩ Max
Leak current	10μA Max.
Insulation resistance	100MΩ Min.
seal	Initial 98kPa Min. after durability tests 98kPa Min.
Quality Control	All goods will be 100% inspected before shipment
Color	Dark Gray
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

More details about pictures

DL Sealed Series Sumitomo 4 Pin Connector 1.0mm 6189-0551 PBT Material

DL Sealed Series Sumitomo 4 Pin Connector 1.0mm 6189-0551 PBT Material
