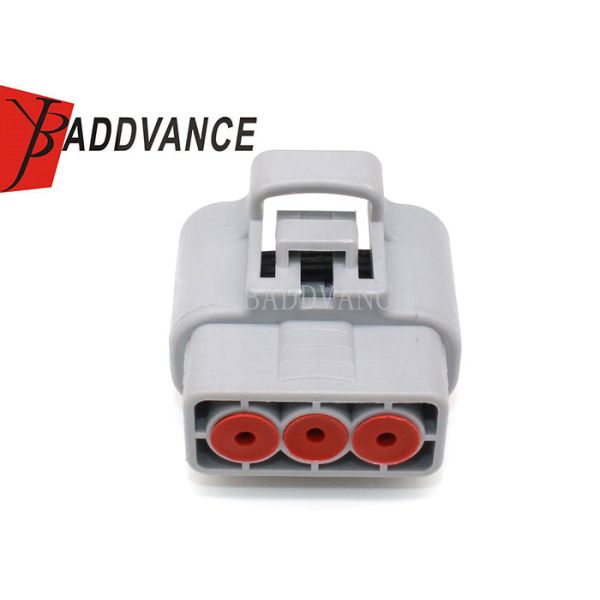

Gray 3 Pin Connector Female 6189-0165 / Sumitomo Electric Connectors For Toyota

Name: Gray 3 Pin Connector Female 61890165 Sumitomo Electric Connectors For Toyota
Brand: YBADDVANCE
Price: 1 USD

Wholesale Gray 3 Pin Connector Female 6189-0165 / Sumitomo Electric Connectors For Toyota from china suppliers

Brand Name : YBADDVANCE

Model Number : 6189-0165

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : Negotiation

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Series : Sumitomo TS Sealed 4.8mm Series

Sumitomo P/N : 6189-0165

Sealed/Unsealed : Sealed

Color : Gray

Material : PBT

Tab size(mm) : 4.8mm(187)

Mating Parts : 6188-0129 (TS sealed series)

Number of position : 3 Pin

Leak current : 100μA Max.

Insulation resistance : 100MΩ Min.

Contact Now

Sumitomo 6189-0165 3 Pin Female Connector Gray For Toyota Corolla Camry

Product Description

3 Pin sumitomo TS series sealed connector female Includes terminals and seals.

This connector we also have male type that is sumitomo 6188-0129.

What's Included:

1 X female housing
3 X female termianls
3 X wire seals
1 X white locking clip

Specification

Keywords	Sumitomo 3 Pin female connector
Sumitomo Part Number	6189-0165
Series	TS sealed 4.8mm series
Male/Female	female
Material	PBT
Number of Rows	1 row
Number of Pin	3 Pin
Leak current	100μA Max.
Insulation resistance	100MΩ Min.
Seal	Initial 49.0kPa Min. after durability tests 29.4kPa Min.
Quality Control	All goods will be 100% inspected before shipment
Color	Gray
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1.5kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
